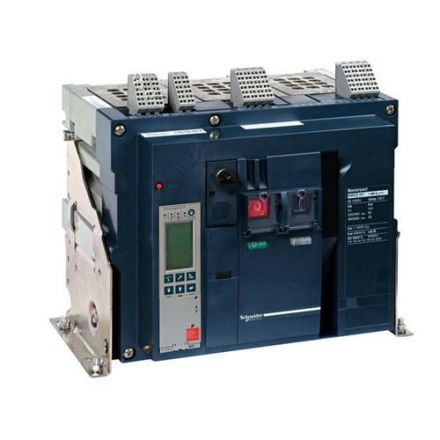

Schneider Electric 48001 NW 08 H1 3P fixed installation basic switch

In stock

SKU: 684073

Price on request

€3,235.11

€0

Overview

Masterpact NW08H1, 3 P, 800A, max. breaking capacity 65kA. Product series: Masterpact NW - Product or component type: Base frame - Short name of the device: Masterpact NW08 - Circuit breaker designation: Masterpact NW08 - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.

Property	Value
Rated continuous current Iu:	800.0 A
Type of connection main circuit:	Rail connection
Number of poles:	3.0
Auxiliary contact make:	0.0
Auxiliary contact break:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for the main circuit:	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	65.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
