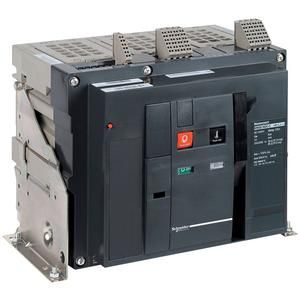

Schneider Electric 48005 NW 08 HA 3P fixed installation basic switch

Schneider Electric 48005 NW 08 HA 3P fixed installation basic switch

In stock

SKU: 684076

Price on request

€3,694.16

€0

Overview

Masterpact NW08HA disconnector, 3p, 800A, 690 V, fixed installation. Series: Masterpact - Product or component type: Load break switch - Device short name: Masterpact NW08 - Disconnector name: Masterpact NW08 - Description of poles: 3P - Network connection: AC - Network frequency: 50/60 Hz - Line break performance index: HA - Plus contact indication: yes - visible breakage: no.

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as changeover contact:	5.0
Rated uninterrupted current Iu:	800.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP30
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Push button
Suitable for floor mounting:	yes
Conditional Rated short-circuit current Iq:	50.0 kA
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Design as safety switch:	yes
Motor drive optional:	yes
Lockable:	yes
Design as reversing switch:	no
Rated short-time withstand current Icw:	50.0 kA
Rated operating voltage:	690.0 V
