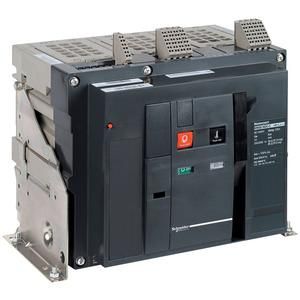

Schneider Electric 48006 NW 08 HF 3P fixed installation basic switch

In stock
SKU: 684077
€4,517.59
Into a basketIn the basketGo

Overview

Masterpact NW08HF disconnector, 3p, 800A, 690 V, fixed installation. Series: Masterpact - Product or component type: Load disconnector - Device short name: Masterpact NW08 - Disconnector name: Masterpact NW08 - Description of poles: 3P - Network connection: AC - Network frequency: 50/60 Hz - Line switch performance index: HF - Plus contact indication: yes - visible breakage: no.

Property Value
Number of poles: 3.0
Number of auxiliary contacts as changeover contact: 5.0
Rated uninterrupted current Iu: 800.0 A
Max. Rated operating voltage Ue at AC: 690.0 V
Design as EMERGENCY STOP device: no
Protection class (IP), front: IP30
Connection type main circuit: Screw connection
Device design: Built-in device, fixed installation technology
Design of the actuating element: Push button
Suitable for floor mounting: yes
Conditional Rated short-circuit current Iq: 85.0 kA
Suitable for front mounting 4-hole: no
Version as maintenance/repair switch: yes
Voltage release optional: yes
Suitable for front mounting central: no
Suitable for intermediate installation: no
Suitable for distribution board installation: no
Version as main switch: yes
Design as safety switch: yes
Motor drive optional: yes
Lockable: yes
Design as reversing switch: no
Rated short-time withstand current Icw: 85.0 kA
Rated operating voltage: 690.0 V

Characteristics

Number of auxiliary contacts as changeover contacts5.0
HAB48006 NW 08 HF 3P fixed installation
ManufacturerSchneider Electric
HAN48006
GTIN3303430480068
Connection type main circuitScrew connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementPush button
Conditional rated short-circuit current Iq85.0kA
Rated operating voltage690.0V
Rated continuous current Iu800.0A
Rated short-time withstand current Icw85.0kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690.0V
Motor drive optionalYes
Number of poles3.0
Protection class (IP), frontIP30
Voltage release optionalYes
LockableYes
