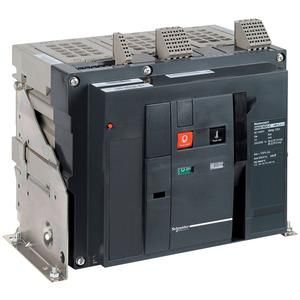

Schneider Electric 48020 NW 10 HF 3P fixed installation basic switch

Schneider Electric 48020 NW 10 HF 3P fixed installation basic switch

In stock

SKU: 684089

Price on request

€4,773.80

€0

Overview

Masterpact NW10HF disconnector, 3p, 1000A, 690 V, fixed installation. Series: Masterpact - Product or component type: Load disconnector - Device short name: Masterpact NW10 - Disconnector name: Masterpact NW10 - Description of poles: 3P - Network connection: AC - Network frequency: 50/60 Hz - Line switch performance index: HF - Plus contact indication: yes - visible breakage: no.

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as changeover contacts:	5.0
Rated uninterrupted current Iu:	1000.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP30
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Push button
Suitable for floor mounting:	yes
Conditional Rated short-circuit current Iq:	85.0 kA
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	no
Designed as safety switch:	no
Motor drive optional:	yes
Lockable:	yes
