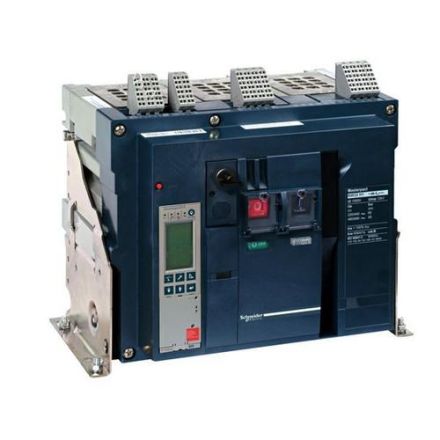

Schneider Electric 48030 NW 12 H2 3P fixed installation basic switch

In stock

SKU: 684098

Price on request

€5,427.14

€0

Overview

Masterpact NW12H2, 3 P, 1250A, max. breaking capacity 100kA. Product series: Masterpact NW - Product or component type: Base frame - Device short name: Masterpact NW12 - Circuit breaker name: Masterpact NW12 - Network connection: AC - Circuit breaker performance index: H2 - Usage category: Category B.

< td>Connection type main circuit:

Property	Value
Rated continuous current Iu:	1250.0 A
Rail connection
Number of poles:	3.0
Normally open auxiliary circuit:	0.0
Normally open auxiliary circuit:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for the main circuit:< /td>	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	100.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Integrated motor drive:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
