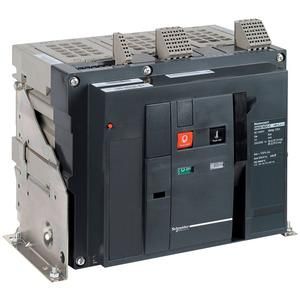

Schneider Electric 48032 NW 12 NA 3P fixed installation basic switch

Schneider Electric 48032 NW 12 NA 3P fixed installation basic switch

In stock

SKU: 684099

Price on request

€4,309.48

€0

Overview

Disconnector Masterpact NW12NA, 3p, 1250A, 690V, fixed installation. Product range: Masterpact - Product or component type: Switch disconnector - Device short name: Masterpact NW12 - Switch disconnector name: Masterpact NW12 - Pole description: 3P - Network connection: AC - Network frequency: 50/60 Hz - Line breaker rating: NA - Plus contact indicator : yes - visible break: no.

< tr> < /tr>

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as changeover contacts:	5.0
Rated continuous current Iu:< /td>	1250.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Emergency stop device version:	no
Protection class (IP), front:	IP30
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Push button< /td>
Suitable for floor mounting:	yes
Conditional Rated short-circuit current Iq:	41.0 kA
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	no
Design as safety switch:	no
Motor drive optional:	yes
Lockable:	yes
