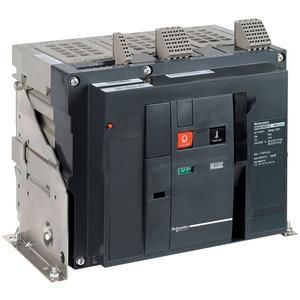

Schneider Electric 48095 NW 40 HA 3P fixed installation basic switch

In stock
SKU: 684145
€19,428.58
Into a basketIn the basketGo

Overview

It is a Masterpact NW40HA 3-pole 4000 A basic switch in fixed installation. It is designed for all standard applications. The rated current is 4000 A and the operating voltage is 690 VAC 50/60 Hz. The rated making capacity is 143 kA peak at 690 V AC in categories AC23A and AC3. It is not supplied with power connections. It complies with the IEC 60947-3 standard.

Property Value
Number of poles: 3.0
Number of auxiliary contacts as changeover contacts: 5.0
Rated continuous current Iu: 4000.0 A
Max. Rated operating voltage Ue at AC: 690.0 V
Design as EMERGENCY STOP device: no
Protection class (IP), front: IP30
Connection type main circuit: Screw connection
Device design: Built-in device, fixed installation technology
Design of the actuating element: Push button
Suitable for floor mounting: yes
Conditional Rated short-circuit current Iq: 55.0 kA
Suitable for front mounting 4-hole: no
Version as maintenance/repair switch: no
Voltage release optional: yes
Suitable for front mounting central: no
Suitable for intermediate installation: no
Suitable for distribution board installation: no
Version as main switch: no
Designed as safety switch: no
Motor drive optional: yes
Lockable: yes

Characteristics

Number of auxiliary contacts as changeover contacts5.0
HAB48095 NW 40 HA 3P fixed installation
ManufacturerSchneider Electric
HAN48095
GTIN3303430480952
Connection type main circuitScrew connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Design of the actuating elementPush button
Conditional rated short-circuit current Iq55.0kA
Rated continuous current Iu4000.0A
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690.0V
Motor drive optionalYes
Number of poles3.0
Protection class (IP), frontIP30
Voltage release optionalYes
LockableYes
