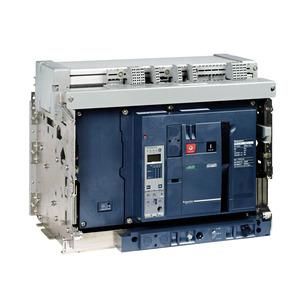

Schneider Electric 48238 NW 08 H1 4P plug-in basic switch

In stock
SKU: 684236
€5,387.61
Into a basketIn the basketGo

Overview

Masterpact NW08H1, 4 P, 800A, max. breaking capacity 65kA. Product series: Masterpact NW - Product or component type: Base frame - Device short name: Masterpact NW08 - Circuit breaker designation: Masterpact NW08 - Neutral position: left - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.

Property Value
Rated continuous current Iu: 800.0 A
Connection type main circuit: Busbar connection
Number of poles: 4.0
Auxiliary normally open contact: 0.0
Open contact Auxiliary circuit: 0.0
Device design: Built-in device, slide-out technology
Position of the connection for the main circuit: rear
Protection class (IP): IP30
Rated voltage: 690.0 V
Icu at 400V: 65.0 kA
Suitable for DIN rail mounting: no
Design of the actuating element: Push button
Integrated earth fault protection: no
Motor drive integrated: no
Motor drive optional: yes
With trip detector: no
Number of auxiliary contacts as changeover contacts: 5.0

Characteristics

Number of auxiliary contacts as changeover contacts5.0
HAB48238 NW 08 H1 4P slot
ManufacturerSchneider Electric
HAN48238
GTIN3303430482383
Connection type main circuitRail connection
Design of the actuating elementPush button
Rated continuous current Iu800.0A
Rated voltage690.0V
Suitable for DIN rail mountingNo
Device typeBuilt-in device slide-in technology
Integrated earth fault protectionNo
With trip detectorNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles4.0
Position of the connection for main circuitRear
IP protection)IP30
