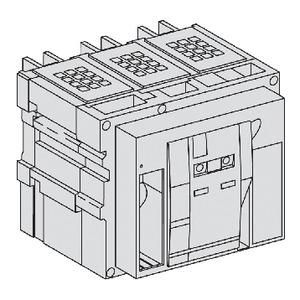

Schneider Electric 48247 NW 10 L1 3P plug-in basic switch

In stock

SKU: 684245

Price on request

€4,979.64

€0

Overview

Masterpact NW10L1, 3 P, 1000A, max. breaking capacity 150kA. Product series: Masterpact NW - Product or component type: Base frame - Short name of the device: Masterpact NW10 - Circuit breaker designation: Masterpact NW10 - Network connection: AC - Circuit breaker performance index: L1 - Usage category: Category B.

Property	Value
Rated continuous current Iu:	1000.0 A
Connection type main circuit:	Rail connection
Number of poles:	3.0
Auxiliary contact make:	0.0
Auxiliary contact break:	0.0
Device design:	Built-in device, slide-out technology
Position of the connection for the main circuit:	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	150.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
