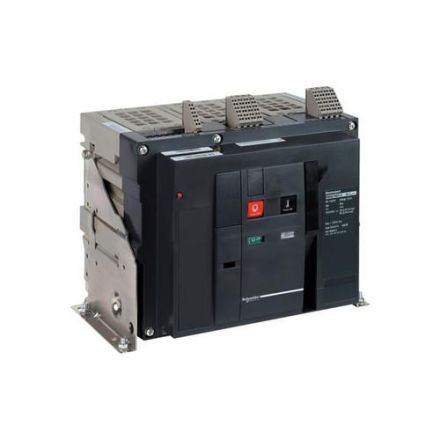

Schneider Electric 48262 NW 12 NA 3P plug-in basic switch

Schneider Electric 48262 NW 12 NA 3P plug-in basic switch

In stock

SKU: 684260

Price on request

€3,235.82

€0

Overview

Masterpact NW12NA disconnector, 3p, 1250A, 690V, withdrawable unit. Series: Masterpact - Product or component type: Load break switch - Device short name: Masterpact NW12 - Switch name: Masterpact NW12 - Description of poles: 3P - Network connection: AC - Network frequency: 50/60 Hz - Line break performance index: NA - Plus contact indication: yes - visible breakage: no.

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as changeover contact:	5.0
Rated uninterrupted current Iu:	1250.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP30
Connection type main circuit:	Screw connection
Device design:	Built-in device, plug-in technology
Design of the actuating element:	Push button
Suitable for floor mounting:	yes
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	no
Version as safety switch:	no
Motor drive optional:	yes
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	42.0 kA
Rated operating voltage:	690.0 V
