Schneider Electric 81883 CEE plug

In stock
SKU: 698342
€118.77
Into a basketIn the basketGo

Overview

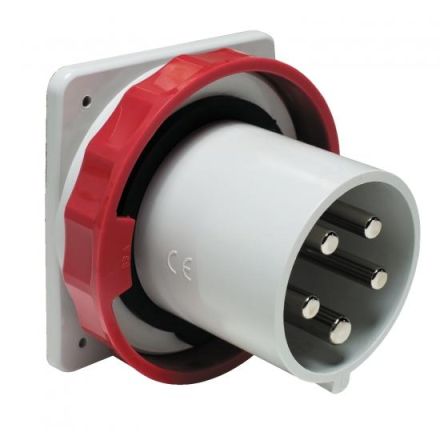

PratiKa straight panel-mounted appliance inlet. It has 3P+N+E poles, a rated current of 63 A and an operating voltage of 400 VAC. The dimensions of the base plate are (W) 110 mm x (H) 265 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The size of the cable entries in 63 A is 17 mm to 31 mm for 6 mm cables up to 25 mm. The color of the base is light gray (RAL 7035) with red for easy identification of the operating voltage. The frequency is 50 Hz or 60 Hz. The clock position of the contact is 6 h.

Property Value
IEC current: 63.0 A
Number of poles: 5.0
Connection technology: screw terminal
Plug direction: straight
Voltage according to EN 60309-2: 400 V (50+60 Hz) red
Time position: 6.0 h
Identification color: red
Protection class (IP): IP67
Material: plastic
Phase inverter: no
Design: Built-in device plug
Military version: no
RAL number: 7035.0
Rated voltage: 380.0 to 415.0 V
Rated frequency: 50.0 to 60.0 Hz

Characteristics

Rated frequency50.0 to 60.0 Hz
Phase inverterNo
HAB81883
ManufacturerSchneider Electric
HAN81883
GTIN3303430818830
Connection technologyScrew terminal
DesignAttachment plug
Rated voltage380.0 to 415.0 V
IEC current63.0A
Identification colorRed
Military versionNo
Number of poles5.0
RAL number7035.0
IP protection)IP67
Voltage according to EN 60309-2400 V (50+60 Hz) red
Plug directionStraight
Time position6.0 hours
MaterialPlastic
