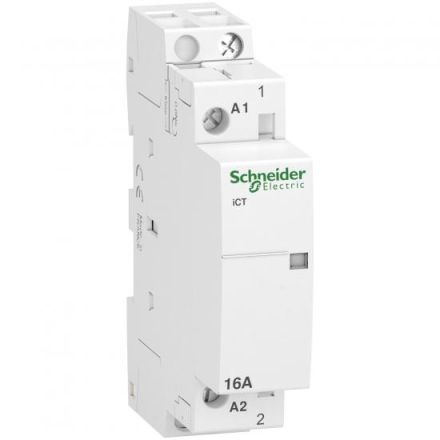

Schneider Electric A9C22711 ICT 1S 16A 230-240VAC installation relay

In stock
SKU: 687723
€23.91
Into a basketIn the basketGo

Overview

Installation contactor iCT 16A 1S 230/240V 50Hz. Contactor application: Motor - Heating - Lighting - Product range: iCT - Product or component type: Contactor - Short name of the device: iCT - Description of poles: 1P - Network type: AC - Usage category: AC-1 according to EN 60947-4-1, AC -3 according to EN 60947-4-1, AC-5A according to EN 60947-4-1, AC-5B according to EN 60947-4-1, AC-7A according to EN 61095, AC-7A according to IEC 1095, AC-7B according to EN 61095, AC-7B according to IEC 1095 - Control type: Remote control

< td>Voltage: < td>Normally open:
Property Value
Voltage type the operating voltage: AC
Protection class (IP): IP20
TE: 1.0
Power P: 2000.0 W
Current I: 16.0 A
250.0 V
Max. fluorescent lamp load (parallel compensated): 800.0 VA
Max. fluorescent lamp load (duo circuit): 1500.0 VA
Max. Fluorescent lamp load: 850.0 VA
Additional equipment possible: yes
Slider for manual switching: no
Voltage type: AC
Installation depth: 43.5 mm
Rated operating voltage: 230.0 to 240.0 V
1.0
Normally open: 0.0

Characteristics

Voltage250.0 V
Max. fluorescent lamp load850.0 VA
HABA9C22711 ICT 1S 16A 230-240VAC
ManufacturerSchneider Electric
HANA9C22711
GTIN3606480088643
Installation depth43.5 mm
IP protection)IP20
Voltage typeAC
TE1.0
Additional equipment possibleYes
