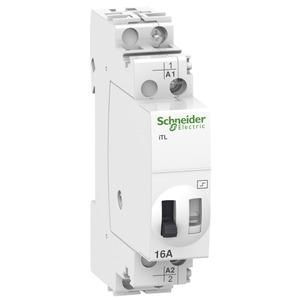

Schneider Electric A9C30311 ITL 1pole 16A 130VAC remote switch

In stock

SKU: 687419

Price on request

€24.48

€0

Overview

Remote switch iTL, 1P, 1S, 16A, coil 130 VAC 50/60Hz- 48 VDC. Relay application: Standard - Product range: iTL - Device abbreviation: iTL - Description of poles: 1P - Number of pole contacts: 1 NO - Network type: AC - Control circuit voltage: 130V AC 50/60 Hz, 48V DC

Property	Value
TE:	1.0
Rated switching current:	16.0 A
Control voltage 1:	130.0 V
Control voltage type 1:	AC
Control voltage 2:	48.0 V
Control voltage type 2:	DC
Installation depth:	43.5 mm
Function:	mechanical switch
Mounting type:	DIN rail
Frequency of control voltage 1:	50.0 to 60.0 Hz
Type of supply voltage:	AC
Supply voltage:	24.0 to 250.0 V
Max. incandescent lamp load:	1600.0 W
Max. fluorescent lamp load:	1300.0 VA
Max. fluorescent lamp load (duo circuit):	2000.0 VA
Max. fluorescent lamp load (parallel compensated):	900.0 VA
Max. Switching current (cos phi = 0.6):	16.0 A
Suitable for manual operation:	yes
Normally open:	1.0
Normally open:	0.0
Changeover:	0.0
