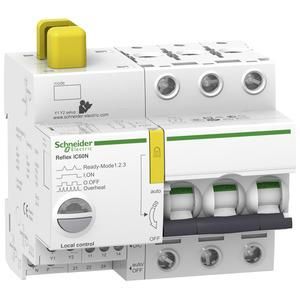

Schneider Electric A9C61310 ACTI9 IC60N TI24 B10A 3-pole B remotely switchable circuit breaker

In stock
SKU: 687342
€191.99
Into a basketIn the basketGo

Overview

Remotely switchable circuit breaker Acti 9 iC60N with breaking capacity 6kA according to IEC/EN 60947-2, TI24 10A 3P B. Color RAL 9003. With Ti24 connection for direct connection of PLC or I/O using 24 VDC. Control using permanent command or pulse. With integrated locking element for padlocks. Compact unit for the functions of line protection and switching of consumers. Bistable switching mechanism does not require any holding power.

Property Value
Tripping characteristic: B
Size according to DIN 43880: 3.0
Rated breaking capacity according to IEC 60947-2: 10.0 kA
Rated switching current additional device: 1.0 A
Rated voltage: 415.0 V
Rated voltage additional device: 230.0 V
Rated current: 10.0 A
TE: 5.5
Installation depth: 44.5 mm
Energy limitation class: 0.0
Switching neutral conductor: no
Number of poles: 3.0
Protection class (IP): IP20
Type of voltage: AC
Control voltage type additional device: AC
Overvoltage category: 4.0
Pollution level: 3.0
Additional devices installed at the factory: Remote drive
Frequency: 50.0 to 60.0 Hz

Characteristics

HABA9C61310 ACTI9 IC60N TI24 B10A 3-pin B
ManufacturerSchneider Electric
HANA9C61310
GTIN3606480455483
Trigger characteristicsB
Rated breaking capacity according to IEC 60947-210.0kA
Rated voltage415.0V
Rated current10.0A
Installation depth44.5 mm
Energy limitation class0.0
Frequency50.0 to 60.0 Hz
Switching neutral conductorNo
Number of poles3.0
IP protection)IP20
Voltage typeAC
TE5.5
Degree of contamination3.0
Overvoltage category4.0
