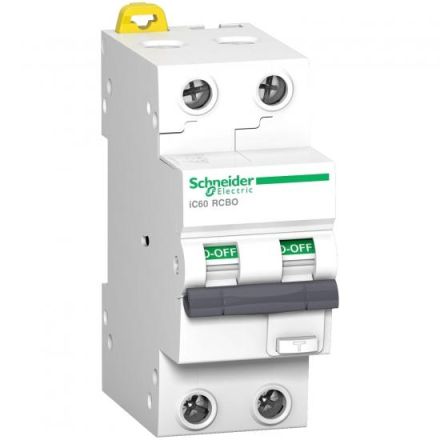

Schneider Electric A9D37220 IC60 2P 20A 30MA B 10KA RCD/MCB

Schneider Electric A9D37220 IC60 2P 20A 30MA B 10KA RCD/MCB

In stock

SKU: 695530

Price on request

€131.65

€0

Overview

RCD/MCB iC60H, 2P, 20A, B characteristic, 30mA type A. Circuit breaker application: Distribution - Series: Acti 9 - Product or component type: Earth leakage circuit breaker - Device short name: RCD/MCB iC60H - Neutral position: both poles possible - Protected poles: both poles - Network type: AC - Earth fault sensitivity: 30mA - Earth fault protection time delay: instantaneous - Rated breaking capacity (lcs) according to EN/IEC61009-1 and EN/IEC 61009-2-1: 10,000 A, validation.

Property	Value
Tripping characteristic:	B
Current:	20.0 A
Fault current:	0.03 A
Voltage:	230.0 V
Frequency:	50 Hz
Number of poles:	2.0
TE:	2.0
Fault current type:	A
Installation depth:	45.0 mm
Rated breaking capacity according to IEC 60947-2:	15.0 kA
Surge current strength:	0.25 kA
Protection class (IP):	IP20
Energy limitation class:	3.0
Overvoltage category:	3.0
Pollution degree:	2.0
Switching neutral conductor:	yes
Number of protected poles:	2.0
Flush-mounted installation:	no
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	4.0 kV
Rated breaking capacity according to EN 61009:	10.0 kA
Rated switching capacity Icn according to EN 61009-1:	10.0 kA
Shutdown characteristic:	undelayed
With locking device:	no
Ambient temperature during operation:	-25.0 to 40.0 °C
Connectable conductor cross-section, single-wire:	1.0 to 35.0 mm²
Connectable conductor cross-section, stranded:	1.0 to 25.0 mm²
