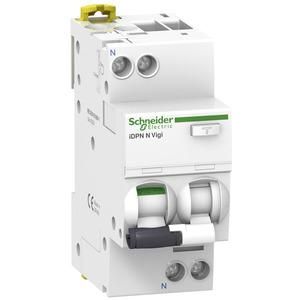

Schneider Electric A9D53620 IDPN N VIGI 1-pole+N C20/0.1A FI/LS switch

Schneider Electric A9D53620 IDPN N VIGI 1-pole+N C20/0.1A FI/LS switch

In stock

SKU: 687503

Price on request

€168.73

€0

Overview

Residual current circuit breaker iDPN N Vigi, 1P+N, 20A, characteristic C, 100mA type A SI. Circuit breaker application: Distribution - Series: Acti 9 - Product or component type: Earth fault circuit breaker - Product name: iDPN Vigi - Device abbreviation: iDPN N Vigi - Neutral position: left - Network type: AC - Earth fault sensitivity: 100mA - Earth fault protection time delay. undelayed - interrupting capacity: Icn 6000 A at 230V AC 50 Hz according to EN/IEC 61009-1, Icn 6000 A at 230V AC 50 Hz according to EN/IEC 61009-2-1

Property	Value
Tripping characteristic:	C
Current:	20.0 A
Fault current:	0.1 A
Voltage:	230.0 V
Frequency:	50 Hz
Number of poles:	2.0
TE:	2.0
Residual current type:	A
Installation depth:	44.0 mm
Surge current strength:	3.0 kA
Degree of protection (IP):	IP20
Energy limitation class:	3.0
Overvoltage category:	3.0
Degree of pollution:	3.0
Switching neutral conductor:	yes
Number of protected poles:	1.0
Flush-mounted installation:	no
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	400.0 V
Rated impulse withstand voltage Uimp:	4.0 kV
Rated breaking capacity according to EN 61009:	6.0 kA
Rated breaking capacity Icn according to EN 61009-1:	6.0 kA
Breaking characteristics:	other
With locking device:	no
Ambient temperature during operation:	-25.0 to 60.0 °C
Connectable conductor cross-section, single-wire:	1.0 to 16.0 mm²
Connectable conductor cross-section, stranded:	1.0 to 10.0 mm²
