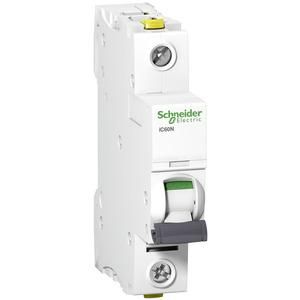

Schneider Electric A9F05170 IC60N 1-pole D0.5A circuit breaker

Schneider Electric A9F05170 IC60N 1-pole D0.5A circuit breaker

In stock

SKU: 687936

Price on request

€28.43

€0

Overview

Miniature circuit breaker Acti 9 iC60N with breaking capacity of 6kA according to EN 60898, 1-pole 0.5A characteristic D. With mechanical fault indicator on the front to indicate trips due to overload and short circuit. Color RAL 9003. Double connection terminal for cable and pin comb bar on the top and bottom of the device. Movable insulation cover. Operation of the top hat rail fastening element on the front of the device for tool-free operation and easy accessibility for the user.

Property	Value
Triggering characteristic:	D
Rated current:	0.5 A
Rated voltage:	230.0 V
Type of voltage:	AC/DC
Frequency:	50.0 to 60.0 Hz
TE:	1.0
Number of poles (total):	1.0
Energy limitation class:	3.0
Additional equipment possible:	yes
Overvoltage category:	4.0
Installation depth:	44.5 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	6.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	50.0 kA
Pollution degree:	3.0
Switching neutral conductor:	no
Number of protected poles:	1.0
Flush-mounted installation:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
Ambient temperature during Operating:	-35.0 to 70.0 °C
Connectable conductor cross-section, stranded:	1.0 to 16.0 mm²
Connectable conductor cross-section, single-wire:	1.0 to 25.0 mm²
Explosion-proof:	no
