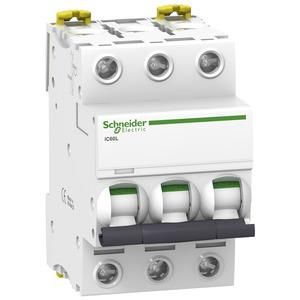

Schneider Electric A9F93302 IC60L 3-pole B2A circuit breaker

Schneider Electric A9F93302 IC60L 3-pole B2A circuit breaker

In stock

SKU: 688256

Price on request

€130.67

€0

Overview

Miniature circuit breaker Acti 9 iC60L with breaking capacity of 100kA according to IEC/EN 60947-2, 3-pole 2A characteristic B. With mechanical fault indicator on the front to indicate trips due to overload and short circuit. Color RAL 9003. Single connection terminal for cable and pin comb bar on the top and bottom of the device. Movable insulation cover. Rear top hat rail fastening element on the top and bottom of the device.

Property	Value
Triggering characteristic:	B
Rated current:	2.0 A
Rated voltage:	400.0 V
Type of voltage:	AC/DC
Frequency:	50.0 to 60.0 Hz
TE:	3.0
Number of poles (total):	3.0
Energy limitation class:	3.0
Additional equipment possible:	yes
Overvoltage category:	4.0
Installation depth:	44.5 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	15.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	100.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	100.0 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	15.0 kA
Pollution level:	3.0
Switching neutral conductor:	no
Number of protected poles:	3.0
Flush-mounted installation:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
Ambient temperature during operation:	-35.0 to 70.0 °C
Connectable conductor cross-section, stranded:	1.0 to 16.0 mm²
Connectable conductor cross-section, single-wire:	1.0 to 25.0 mm²
Explosion-proof:	no
