Flush-mounted installationNo

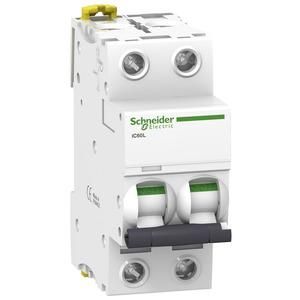

HABA9F94232 IC60L 2-pin C32A
HANA9F94232
GTIN3606480084607
Connectable conductor cross-section solid1.0 to 35.0 mm²
Connectable conductor cross-section stranded1.0 to 25.0 mm²
Number of protected poles2.0
Trigger characteristicsC
Rated insulation voltage Ui500.0V
Rated switching capacity Icn according to EN 60898 at 230 V15.0kA
Rated switching capacity Icn according to EN 60898 at 400 V15.0kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V36.0kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V20.0kA
Rated voltage400.0V
Rated impulse withstand voltage Uimp6.0kV
Rated current32.0A
Installation depth44.5 mm
Energy limitation class3.0
Explosion-proofNo
Frequency50.0 to 60.0 Hz
Switching neutral conductorNo
Number of poles (total)2.0
IP protection)IP20
Voltage typeAC/DC
TE2.0
Ambient temperature during operation-35.0 to 70.0 °C
Degree of contamination3.0
Additional equipment possibleYes
Overvoltage category4.0
