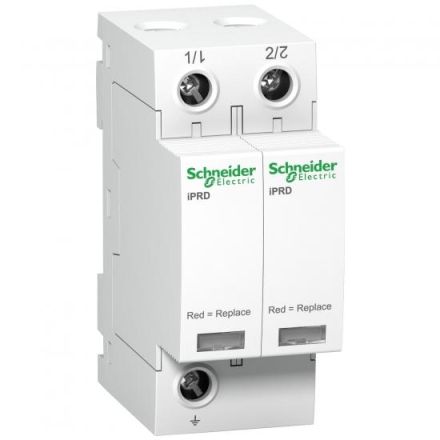

Schneider Electric A9L40200 surge arrester

In stock

SKU: 699992

Price on request

€118.46

€0

Overview

Surge arrester iPRD40, type 2, 2P, Imax 40kA, Uc 350V. Product range: iPRD - Product or component type: Surge arrester with plug-in protection module - Abbreviation of the device: iPRD40 - Type. d. Surge arrester: electrical distribution network - earthing system: TN-CS.

Property	Value
Protection level:	1.4 kV
Nominal discharge current (8/20):	15.0 kA
Maximum continuous operating voltage AC:	350.0 V
Nominal voltage AC:	350.0 V
Protection level LN:	1.4 kV
Mounting type:	DIN rail TH35
Size:	2 TE
Signaling on the device:	optical
With remote signaling contact:	no
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	16.0 mm²
Max. Conductor cross-section rigid (single/multi-wire):	25.0 mm²
Protection level N-PE:	1.4 kV
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	no
Network type TN-C:	yes
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	no
Number of conductors (excluding earth):	2.0
Short-circuit strength (Isccr):	50.0 kA
Max. discharge current (8/20):	40.0 kA
Max. Overcurrent protection device branch wiring (fuse):	63.0 A
Max. overcurrent protection device V-wiring (fuse):	80.0 A
Integrated short-circuit protection:	no
Leakage current free:	no
