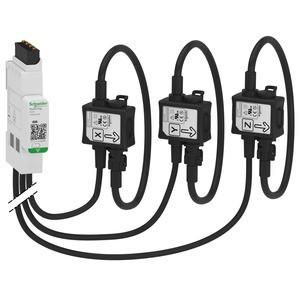

The PowerTag Energy R200 3P/3P+N is an energy meter with wireless communication. With its Rogowski current transformers, it is suitable for 3P and 3P+N measuring points with a nominal current of up to 200A. It must be connected to an Ethernet gateway (Modbus TCP) for wireless energy meters to enable measurement, switching monitoring and diagnostics of the load. It is specifically designed for energy management, load monitoring and availability applications. It includes accurate real-time measurements of active, reactive and apparent energy, active, reactive and apparent power, current, voltage and power factor. In the event of a power failure, it sends a voltage loss alarm and the value of the current per phase before switching off. PowerTag Energy R200 complies with the IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The accuracy class is Class 1. The maximum current Imax is 200A. The Ib base current is 30A. The saturation current is 400A and the actual starting current is 120mA. The Un rated voltages are phase-neutral 100 to 277VAC +/- 20% and phase-phase 173 to 480VAC +/- 20%. The maximum consumption is less than 3VA. The current transformers can be mounted either on bare or insulated busbars or on cables. The product color is white (RAL9003). The weight is 360 g. The degree of protection is IP20 (IP40 front) and IK05. The operating temperature is between -25°C to +70°C. The storage temperature is between -40°C and +85°C.
