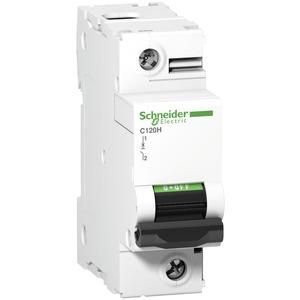

Schneider Electric A9N18404 C120H 1-pole B125A circuit breaker

Schneider Electric A9N18404 C120H 1-pole B125A circuit breaker

In stock

SKU: 688436

Price on request

€85.95

€0

Overview

Miniature circuit breaker C120H, 1P, 125A, B characteristic. Product range: C120 - Range: Acti 9 - Product name: C120 - Product or component type: Miniature circuit breaker - Device short name: C120H - Network type: AC - Trip unit technology: thermomagnetic - Interrupting capacity: 15 kA Icu according to EN/IEC 60947-2 - 144V DC, 15 kA Icu according to EN/IEC 60947-2 - 220-240V AC 50/60 Hz, 15000 A Icn according to EN/IEC 60898-1 - 230-400V AC 50/60 Hz, 20 kA Icu according to EN/IEC 60947-2 - 12V DC, 20 kA Icu according to EN/IEC 60947-2 - 125V DC, 30 kA Icu according to EN/IEC 60947-2 - 12V AC 50/60 Hz, 30 kA Icu according to EN/IEC 60947-2 - 130V AC 50/60 Hz, 4.5 kA Icu according to EN/IEC 60947-2 - 380-415V AC 50/60 Hz IT.

Property	Value
Tripping characteristic:	B
Rated current:	125.0 A
Rated voltage:	415.0 V
Type of voltage:	AC
Frequency:	50.0 to 60.0 Hz
TE:	1.5
Number of poles (total):	1.0
Energy limitation class:	3.0
Additional equipment possible:	yes
Overvoltage category:	4.0
Installation depth:	44.0 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	15.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	15.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	4.5 kA
Pollution level:	3.0
Switching neutral conductor:	no
Number of protected Poles:	2.0
Flush-mounted installation:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
Ambient temperature during operation:	-30.0 to 60.0 °C
Connectable conductor cross-section, stranded:	1.0 to 35.0 mm²
Connectable conductor cross-section, single-wire:	1.5 to 50.0 mm²
Explosion-proof:	no
