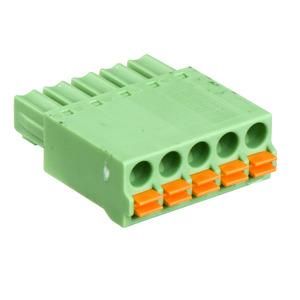

Schneider Electric A9XC2412 TI24 (12pcs) plug

In stock
SKU: 677398
€40.63
Into a basketIn the basketGo

Overview

Accessories Acti 9 Smartlink. 5-pin connector (Ti24) for free wiring. VPE 12. Data transfer between the Smartlink and Acti 9 devices such as circuit breakers, residual current circuit breakers, residual current devices.

Property Value
Number of poles: 5.0
Rated current In: 8.0 A
Rated impulse voltage: 2.5 kV
With protective conductor: no
Conductor cross-section: 0.5 to 1.5 mm²
Material of the Connector insert: Thermoplastic
Rated voltage: 24.0 V
Overvoltage category: III
Ambient temperature: 0.0 to 60.0 °C
Contact design: Pin
Diameter of plug contact: 2.2 mm
Pollution level: 2
Material of contact: Nickel
QS single-wire: 0.5 to 1.5 mm²
QS wire end ferrule: 0.25 to 0.75 mm²
QS fine-wire: 0.25 to 1.5 mm²
Contact insert without contacts: no
Connection type: Spring-loaded connection
With wire protection: yes
Flammability class of the insulating material according to UL94: V0
Number of power contacts: 0.0
Number of control contacts: 5.0
Operating temperature: 0.0 to 65.0 °C
Min. number of mating cycles: 100.0
Width: 19.54 mm
Height: 7.8 mm
Depth: 22.9 mm

Characteristics

Rated surge voltage2.5 kV
HABA9XC2412 TI24 (12pcs)
ManufacturerSchneider Electric
HANA9XC2412
GTIN3606480437274
Connection typeSpring-loaded connection
Rated voltage24.0V
Rated current In8.0A
Operating temperatur0.0 to 65.0 °C
Width19.54 mm
Height7.8 mm
Conductor cross-section0.5 to 1.5 mm²
Number of poles5.0
Depth22.9 mm
Ambient temperature0.0 to 60.0 °C
Degree of contamination2
Overvoltage categoryIII
