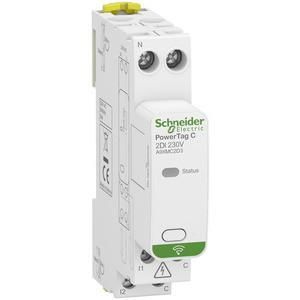

Schneider Electric A9XMC2D3 PowerTag C 2DI 230V, 2 digital inputs communication module

Schneider Electric A9XMC2D3 PowerTag C 2DI 230V, 2 digital inputs communication module

In stock

SKU: 765492

Price on request

€104.59

€0

Overview

PowerTag Control 2DI module. Status query of two potential-free contacts via the digital inputs. PowerTag Control wireless communication module for monitoring applications, 230V AC, 50/60Hz. The PowerTag Control module connects to a PowerTag Link module or Smartlink SI B via radio transmission. Part of the Acti9 PowerTag system - PowerTag Link or Smartlink SI B. Width 1 HP, weight 80 grams, ISM band 2.4 - 2.4835 GHz. LED light for status display on the front.

Property	Value
Protection class (IP):	IP20
Type of supply voltage:	AC
Permissible voltage at the input:	230.0 V
Input current for signal 1:	2.0 mA
Width:	18.0 mm
Height:	85.0 mm
Depth:	62.0 mm
Rail mounting possible:	yes
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Number of HW interfaces wireless:	1.0
Supports protocol for INTERBUS:	no
Design of the electrical connection:	screw connection
Performance level according to EN ISO 13849-1:	without
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	no
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for Modbus:	no
Wall/direct mounting possible:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Number of PROFINET interfaces:	0.0
Suitable for safety functions:	no
Supply voltage AC 60 Hz:	230.0 V
Supports protocol for TCP/IP:	no
Supply voltage AC 50 Hz:	230.0 V
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Type of input voltage:	AC
Delay. Time:	100.0 ms
Field bus connection via separate bus coupler possible:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	no
Number of HW interfaces Industrial Ethernet:	0.0
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	0.0
Number of HW interfaces serial TTY:	0.0
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	0.0
With optical interface:	no
Associated equipment (Ex ia):	no
Number of HW interfaces USB:	0.0
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Wireless standard GSM:	no
Digital inputs:	2.0
Wireless standard GPRS:	no
Digital outputs:	0.0
SIL according to IEC 61508:	without
Digital outputs configurable:	no
Radio standard UMTS:	no

Characteristics

Type of voltage of the supply voltageAC

Supports protocol for KNXNo

With optical interfaceNo

HABPowerTag C 2DI 230V, 2 digital inputs

Manufacturer

HANA9XMC2D3

GTIN3606489749125

Design of the electrical connectionScrew connection

Width18.0 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Height85.0 mm

Performance Level according to EN ISO 13849-1Without

SIL according to IEC 61508Without

IP protection)IP20

Depth62.0 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo
