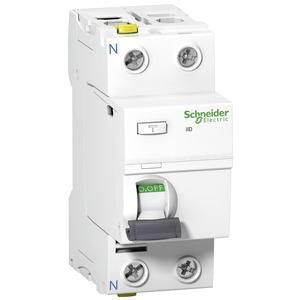

Schneider Electric A9Z31225 IID 2-pole 25/0.03A residual current circuit breaker

Schneider Electric A9Z31225 IID 2-pole 25/0.03A residual current circuit breaker

In stock

SKU: 675827

Price on request

€122.46

€0

Overview

Residual current circuit breaker iID, 2P, 25A, 30mA, type A, SI-superimmunized. Series: Acti 9 - Product or component type: Earth fault protection - Device abbreviation: iID - Description of poles: 2P - Neutral position: left - Network type: AC - Rated interruption and trip cap. 1500 A according to EN 61008-1, 1500 A according to IEC 61008-1.

Property	Value
Rated voltage:	230.0 V
Current:	25.0 A
Fault current:	0.03 A
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50/60 Hz
Number of poles:	2.0
TE:	2.0
Selective type:	no
Residual current type:	A
Additional equipment possible:	yes
Installation depth:	44.0 mm
Surge current strength:	3.0 kA
Short-time delayed type:	yes
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
With locking device:	yes
Ambient temperature during operation:	-25.0 to 60.0 °C
Pollution level:	3.0
Connectable conductor cross-section, stranded:	1.0 to 25.0 mm²
Connectable conductor cross-section, solid:	1.0 to 35.0 mm²
Voltage type:	AC
Explosion-proof:	no
