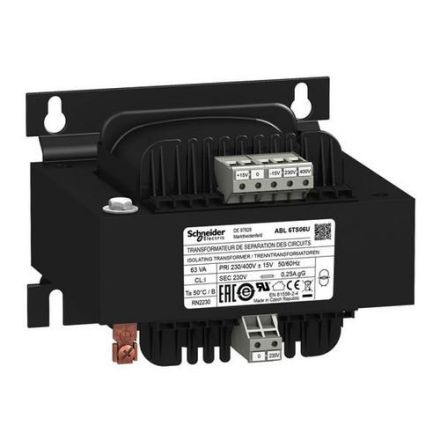

Schneider Electric ABL6TS06U 230/400VAC 63VA 1X 230VAC transformer

In stock

SKU: 682522

Price on request

€66.24

€0

Overview

This transformer transmits alternating current. The input voltage is 230 VAC or 400 VAC and can be adjusted by +/-15 VAC. On the output side, 230 VAC at 63 VA is available via a single winding. The mains frequency is 50/60 Hz. It is attached to a mounting plate with 4 screws.

Property	Value
Power:	63.0 VA
Height:	90.0 mm
Width:	78.0 mm
Depth:	80.0 mm
Primary voltage 1:	230.0 to 400.0 V
Secondary voltage 1:	230.0 V
Protection class (IP):	IP20
Suitable for series installation:	no
Short-circuit proof:	no
Primary voltage 2:	385.0 to 415.0 V
Designed as an isolating transformer:	yes
Relative short-circuit voltage uk:	9.08 %
Toroidal core:	no
Insulation class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	yes
Designed as an economy transformer:	no
Conductor material:	other
