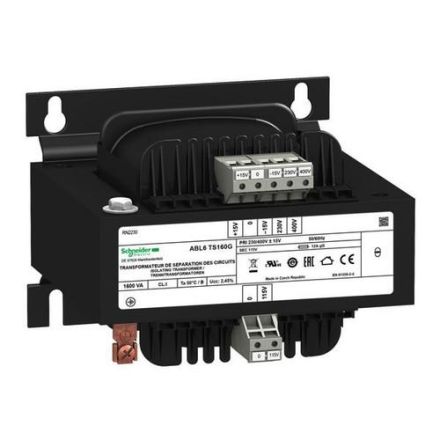

Schneider Electric ABL6TS160G 230/400VAC 1600VA 1X 115VAC transformer

In stock

SKU: 682528

Price on request

€597.11

€0

Overview

This transformer transmits alternating current. The input voltage is 230 VAC or 400 VAC and can be adjusted by +/-15 VAC. On the output side, 115 VAC at 1,600 VA is available via a single winding. The mains frequency is 50/60 Hz. It is attached to a mounting plate with 4 screws.

Property	Value
Power:	1600.0 VA
Height:	221.0 mm
Width:	174.0 mm
Depth:	167.0 mm
Primary voltage 1:	230.0 to 400.0 V
Secondary voltage 1:	115.0 V
Protection class (IP):	IP20
Suitable for series installation:	no
Short-circuit proof:	no
Primary voltage 2:	385.0 to 415.0 V
Designed as an isolating transformer:	yes
Relative short-circuit voltage uk:	2.45 %
Toroidal core:	no
Insulation class according to IEC 85:	F
Suitable for circuit board mounting:	no
Designed as a safety transformer:	yes
Designed as an economy transformer:	no
Conductor material:	other
