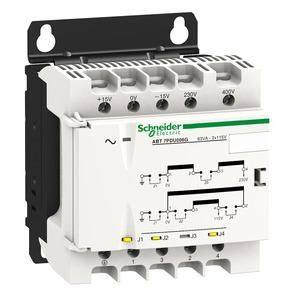

Schneider Electric ABT7PDU002G Uni 230/400VAC 2X115VAC 25VA transformer

In stock
SKU: 682554
€96.65
Into a basketIn the basketGo

Overview

This transformer transmits alternating current. The design of the housing is more like a contactor than a classic transformer and thus enhances the control cabinet. The input voltage is 230 VAC or 400 VAC and can be adjusted by +/-15 VAC. The supply comes from a 1-phase network or between 2 phases of a 3-phase network. On the output side, 2 independent 115 VAC at 25 VA are available via a double winding. Using jumpers, the output voltages can optionally be connected in parallel to increase the power or in series to increase the voltage. The mains frequency is 50/60 Hz. It is attached to a mounting plate with 4 screws. An LED display provides information about the status.

Property Value
Power: 25.0 VA
Height: 98.0 mm
Width: 87.0 mm
Depth: 108.0 mm
Primary voltage 1: 230.0 V
Secondary voltage 1: 115.0 to 230.0 V
Protection class (IP): other
Suitable for series installation: no
Short-circuit proof: no
Primary voltage 2: 400.0 V
Designed as an isolating transformer: no
Toroidal core: no
Insulation class according to IEC 85: A
Suitable for circuit board mounting: no
Designed as a safety transformer: no
Designed as an economy transformer: no
Conductor material: other

Characteristics

Short circuit proofNo
Conductor materialOther
Secondary voltage 1115.0 to 230.0 V
HABABT7PDU002G Uni 230/400VAC 2X115VAC 25VA
ManufacturerSchneider Electric
HANABT7PDU002G
GTIN3389119401173
Width87.0 mm
Suitable for series installationNo
Height98.0 mm
Performance25.0VA
IP protection)Other
Depth108.0 mm
