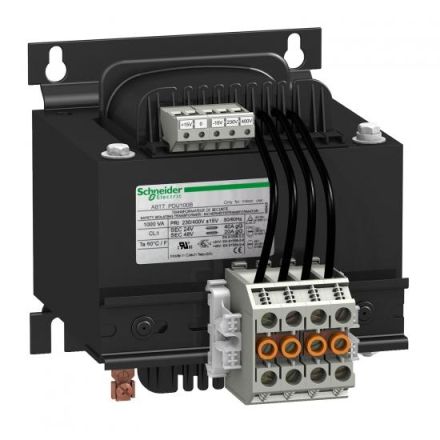

This transformer transmits alternating current. The input voltage is 230 VAC or 400 VAC and can be adjusted by +/-15 VAC. The power supply comes from a 1-phase network or between 2 phases of a 3-phase network. On the output side, 2 independent 24 VAC at 2,500 VA are available via a double winding. The output voltages can optionally be connected in parallel to increase the power or in series to increase the voltage using jumpers. The mains frequency is 50/60 Hz. It is attached to a mounting plate with 4 screws.
