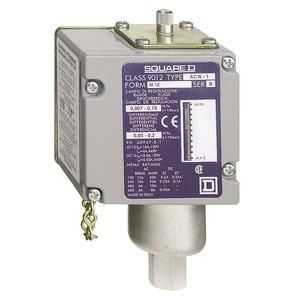

Schneider Electric ACW5M129012 pressure switch

In stock

SKU: 675900

Price on request

€570.20

€0

Overview

ACW NEMA pressure switch for control circuits, 5.2 bar, adjustable hysteresis, 2 switching points, 1 normally closed or 1 normally open contact

Property	Value
Initial value of measuring range pressure:	37000.0 Pa
Number of auxiliary contacts as normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as changeover:	1.0
Number of normally closed as main contacts:	0.0
Number of normally open contacts as main contacts:	0.0
Design of the electrical connection:	Screw connection
Switch-off pressure:	0.07 to 5.2 bar
Rated operating voltage Ue at AC 50 Hz:	24.0 to 500.0 V
Rated operating voltage Ue at AC 60 Hz:	0.0 to 500.0 V
Rated operating voltage Ue at DC:	24.0 to 600.0 V
Burst pressure:	7.0 bar
Pressure switching difference:	1.0 bar
Switch-on pressure:	0.07 to 5.2 bar
Electronic version:	no
End value measuring range pressure:	620000.0 Pa
Explosion-proof:	no
Suitable as 2-point controller:	yes
Suitable as a limiter:	yes
Suitable as a guard:	yes
Max. Test pressure:	1.0 bar
Medium temperature:	-73.0 to 125.0 °C
With manual operation:	no
Protection class (IP):	IP65/IP67
Initial setting:	370.0 to 6200.0 hPa
Final setting:	70.0 to 5200.0 hPa
Max. Working pressure:	6200.0 hPa
With manual on/off switch:	no
Thread size:	other
With display:	no
Protection class (NEMA):	other
Height:	167.0 mm
Width:	88.0 mm
Depth:	68.0 mm
