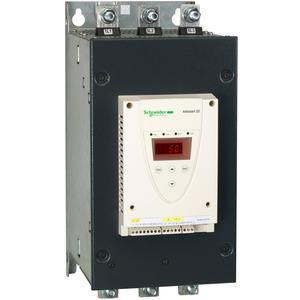

Schneider Electric ATS22C21Q 3-pole 210A 55-110kW soft starter

In stock

SKU: 687196

Price on request

€1,982.93

€0

Overview

Soft starter 17 -590 A The new Altistart 22 soft starter offers you: - Space saving thanks to the integrated bypass contactor - Simple wiring - Protection of your electrical system - Reduction in your operating costs

Feature	Value
Rated power three-phase motor, inside-delta connection, at 230 V:	90.0 kW
Integrated overload protection of the motor:	yes
Rated power three-phase motor, standard connection, at 230 V:	55.0 kW
Rated ambient temperature without derating:	40.0 °C
Rated power three-phase motor, standard circuit, at 400 V:	110.0 kW
Rated power three-phase motor, inside-delta circuit, at 400 V:	160.0 kW
Rated operating current Ie at 40 °C Tu:	210.0 A
Type of voltage for actuation:	AC
Rated operating voltage Ue:	230.0 to 440.0 V
Rated control supply voltage AC 50 Hz:	230.0 V
Rated control supply voltage AC 60 Hz:	220.0 to 230.0 V
Rated control supply voltage DC:	24.0 V
Torque control:	yes
Internal bridging:	yes
With display:	no
Function:	one direction of rotation
Trip class:	other
Protection class (IP):	IP20
