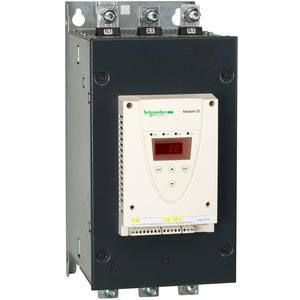

Schneider Electric ATS22C41Q 3-pole 410A 110-220kW soft starter

In stock
SKU: 687198
€3,228.28
Into a basketIn the basketGo

Overview

Soft starter Alistart 22. for 3-phase asynchronous motors in mains or delta connection with an output of 410A, a rated output of 110 to 355KW and a rated voltage of 230 to 440V AC. The soft starter enables the gentle starting and stopping of three-phase asynchronous motors and prevents current peaks in the start-up phase as well as mechanical load surges. Patented torque control enables load-independent, linear acceleration and deceleration, also suitable for the controlled acceleration and deceleration of pumps. Integrated bypass contactor. Extremely simple commissioning thanks to Plug & Drive. Preset for the most common applications. Operating terminal for convenient operator dialog (PC via SoMove software). Meets radio interference class A without accessories and class B up to 170 A. 3 logic inputs, 2 logic outputs. Integrated electronic motor protection and PTC sensor connection. Numerous protection and monitoring functions. Delta connection possible.

Property Value
Rated power three-phase motor, inside-delta connection, at 230 V: 160.0 kW
Integrated overload protection of the motor: yes
Rated power three-phase motor, standard connection, at 230 V: 110.0 kW
Rated ambient temperature without derating: 40.0 °C
Rated power three-phase motor, standard connection, at 400 V: 220.0 kW
Rated power three-phase motor, inside delta connection, at 400 V: 315.0 kW
Rated operating current Ie at 40 °C Tu: 410.0 A
Type of voltage for actuation: AC
Rated operating voltage Ue: 230.0 to 440.0 V
Rated control supply voltage AC 50 Hz: 230.0 V
Rated control supply voltage AC 60 Hz: 220.0 to 230.0 V
Rated control supply voltage DC: 24.0 V
Torque control: yes
Internal bridging: yes
With display: no
Function: one direction of rotation
Trip class: other
Protection class (IP): IP20

Characteristics

Rated operating voltage Ue230.0 to 440.0 V
Rated control supply voltage AC 50 Hz230.0 V
HABATS22C41Q 3-pole 410A 110-220kW
ManufacturerSchneider Electric
HANATS22C41Q
GTIN3606480211287
Trigger classOther
FunctionOne direction of rotation
With displayNo
IP protection)IP20
Voltage type for actuationAC
