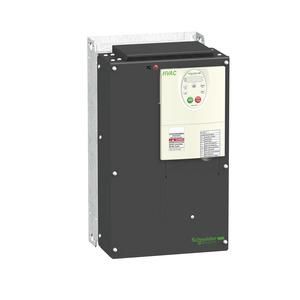

Schneider Electric ATV212HD22N4 22kW 480V 3phase IP21 frequency converter

Schneider Electric ATV212HD22N4 22kW 480V 3phase IP21 frequency converter

In stock

SKU: 677961

Price on request

€2,457.81

€0

Overview

Focus on centralized technical management - Immediate overview of energy consumption. Fault detection and timely intervention options: drive belt breakage, pump running dry, phase failure, power failure, etc. Preventive maintenance to minimize costs and optimize the system: fault notifications, operating times, etc. Connection to building management systems via embedded protocols. Focus on user-friendliness - Tools for installation, configuration and monitoring of the system (decentralized graphic terminal in 6 languages, multi-loader, Bluetooth and SoMove Mobile). Compact design. Easy maintenance. Focus on protection functions - Guaranteed continuous operational reliability. Permanently integrated building functions (fire protection mode, register monitoring, mechanical protection function, etc.). Integrated EMC filters, harmonic protection technology (THDI ~ 30%).

Property	Value
Protection class (IP):	IP21
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Nominal output current:	43.5 A
Max. output voltage:	480.0 V
Mains voltage:	380.0 to 480.0 V
Number of input phases:	3
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	0.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	1.0
4-quadrant operation possible:	no
Max. Output frequency:	200.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	no
Height:	420.0 mm
Supports protocol for LON:	yes
Width:	240.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	214.0 mm
Type of converter:	U-converter
Integrated brake chopper:	no
Max. delivered power with linear load at rated output voltage:	22.0 kW
Supports protocol for TCP/IP:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	0.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	22.0 kW
Number of USB hardware interfaces:	0.0
With PC connection:	yes
Number of analog outputs:	1.0
Number of analog inputs:	2.0
Number of digital outputs:	0.0
Number of digital inputs:	3.0
Supports protocol for BACnet:	no
