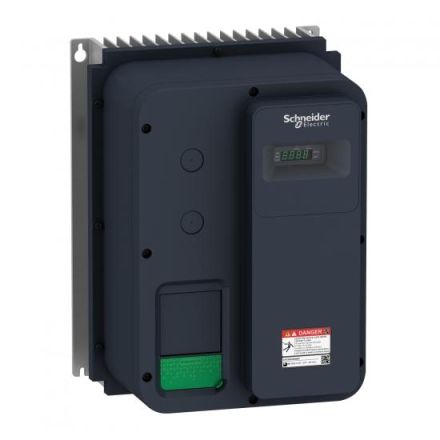

Schneider Electric ATV320U40N4W ATV320 4kW 400V 3pha IP66 frequency converter

Schneider Electric ATV320U40N4W ATV320 4kW 400V 3pha IP66 frequency converter

In stock

SKU: 702940

Price on request

€1,072.89

€0

Overview

ATV320 IP66 / 3Ph / 380V without main switch. Dimensions 250 x 340 x 235 mm, power KW 4 kW. Description Integrated safety technology with 5 functions safe torque off (STO), safe stop1 (SS1), safe reduced speed (SLS), safe protective door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) ensures maximum speed quality and stability U/F control, U/F2 control, energy saving function. Max. frequency 599 Hz. Extremely simple commissioning, intuitive operation and thanks to Plug & Drive, preset for the most common applications. Options for loading, editing and saving the configurations of the converter with tools such as the SoMove commissioning software, the decentralized terminals and the configuration tools -Simple-Loader- and -Multi-Loader-. Class A radio interference filter integrated, can be deactivated. for operation on IT networks. 6 logic inputs with multiple functions that can be assigned, 3 analog inputs, 2 of which can be switched to digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.

Property	Value
Protection class (IP):	IP66
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Nominal output current:	9.5 A
Max. Output voltage:	500.0 V
Mains voltage:	380.0 to 500.0 V
Number of input phases:	3
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	1.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	1.0
4-quadrant operation possible:	yes
Max. Output frequency:	599.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	no
Height:	340.0 mm
Supports protocol for LON:	no
Width:	250.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	235.0 mm
Type of converter:	U-converter
Integrated brake chopper:	yes
Max. delivered power with linear load at rated output voltage:	4.0 kW
Supports protocol for TCP/IP:	yes
Supports protocol for DeviceNet:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports Protocol for SUCONET:	no
Supports protocol for CAN:	yes
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	no
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	0.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	4.0 kW
Number of USB hardware interfaces:	0.0
With PC connection:	yes
Number of analog outputs:	1.0
Number of analog inputs:	3.0
Number of digital outputs:	3.0
Number of digital inputs:	7.0
Supports protocol for BACnet:	no
Protection class (NEMA):	4X
