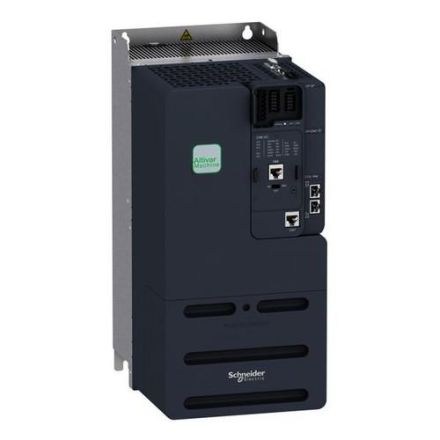

Schneider Electric ATV340D18N4E ATV340 18.5kW 380-480V IP20 Ethernet frequency converter

Schneider Electric ATV340D18N4E ATV340 18.5kW 380-480V IP20 Ethernet frequency converter

In stock

SKU: 695431

Price on request

€2,635.72

€0

Overview

Altivar Machine ATV340, a frequency converter for machine manufacturers (OEM) who implement high-performance applications for three-phase motors with or without encoder from 0.75 to 75 kW (1 to 100 HP).

Feature	Value
Protection class (IP):	IP20
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Nominal output current:	49.9 A
Max. Output voltage:	480.0 V
Mains voltage:	380.0 to 480.0 V
Number of input phases:	3
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	1.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	1.0
4-quadrant operation possible:	yes
Max. Output frequency:	599.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	no
Height:	385.0 mm
Supports protocol for LON:	no
Width:	180.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	249.0 mm
Type of converter:	U-converter
Integrated brake chopper:	no
Max. delivered power with linear load at rated output voltage:	22.0 kW
Supports protocol for TCP/IP:	yes
Supports protocol for DeviceNet:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Permitted for use in residential and commercial areas:	no
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	no
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
With control element:	no
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	2.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	22.0 kW
Number of HW interfaces USB:	0.0
With PC connection:	yes
Number of analog outputs:	1.0
Number of analog inputs:	2.0
Number of digital outputs:	2.0
Number of digital inputs:	5.0
Supports protocol for BACnet:	no
