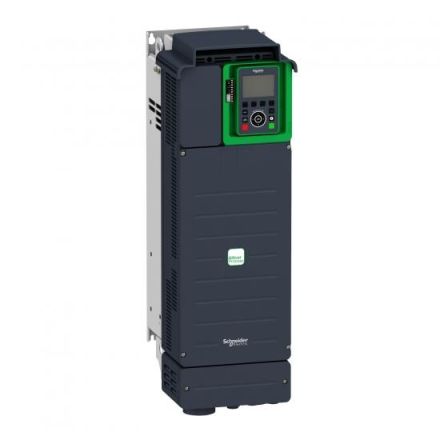

Schneider Electric ATV630D45N4 ATV630 45 kW/60 HP 380-480V IP21 frequency converter

Schneider Electric ATV630D45N4 ATV630 45 kW/60 HP 380-480V IP21 frequency converter

In stock

SKU: 694756

Price on request

€4,770.58

€0

Overview

Performance-oriented frequency convertersBy supporting energy management, asset management and also the overall performance of the process, this new frequency converter concept meets the most important process and equipment expectations in terms of efficiency and machine running costs. Sustainable cost savings thanks to predictable maintenance based on condition - Reduce downtime by up to 20% without additional investment Unique, technically sophisticated frequency convertersSchneider Electric's expertise in design and application services offers specific solutions adapted to your process requirements to enable seamless integration into the existing plant. Minimizes design and delivery risks - Reduces the time required for commissioning and adjustment Advanced frequency converter specificationsAltivar Process devices are compact and modular, also suitable for use in harsh environments and are the perfect solution for upgrades, retrofits or new installations. Altivar process frequency converters can withstand difficult operating conditions, both electrical and environmental.

Property	Value
Protection class (IP):	IP21
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Nominal output current:	88.0 A
Max. Output voltage:	480.0 V
Mains voltage:	380.0 to 480.0 V
Number of input phases:	3
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	0.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	1.0
4-quadrant operation possible:	yes
Max. Output frequency:	500.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	yes
Height:	673.0 mm
Supports protocol for LON:	no
Width:	226.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	271.0 mm
Type of converter:	U-converter
Integrated brake chopper:	no
Max. delivered power with linear load at rated output voltage:	45.0 kW
Supports protocol for TCP/IP:	yes
Supports protocol for DeviceNet:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	no
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	1.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	45.0 kW
Number of HW interfaces USB:	0.0
With PC connection:	no
Number of analog outputs:	2.0
Number of analog inputs:	3.0
Number of digital outputs:	0.0
Number of digital inputs:	6.0
Supports protocol for BACnet:	no
