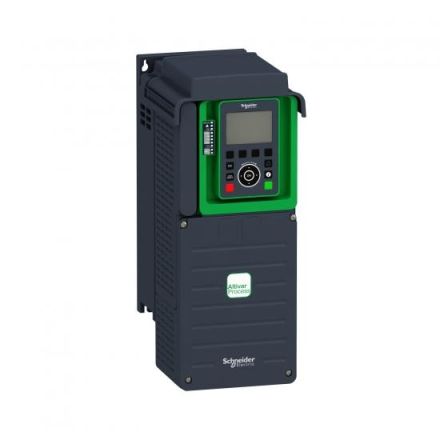

Schneider Electric ATV930D11N4 ATV930 11kW 400/480V with brake module IP21 frequency converter

Schneider Electric ATV930D11N4 ATV930 11kW 400/480V with brake module IP21 frequency converter

In stock

SKU: 686783

Price on request

€1,936.42

€0

Overview

Frequency converter ATV930, wall-mounted. 11KW, 380-480V, IP21, with brake module. Precise measurement of the power consumption of the monitoring processes (deviation < 5%). Integrated web server with direct access to system configuration and monitoring. Simple master/slave coupling via Ethernet, with load balancing. Application functions for e.g. conveyor belts or cranes. Continuous and historical real-time measurements with customer-specific customizable dashboards. Predictive and preventive maintenance tracking functions (e.g. temperatures with PT100/1000 temperature sensors, fan monitoring). Integrated safety function: STO (Safe Torque Off) SIL3. Integrated communication: Modbus/TCP, Ethernet/IP. Serial communication: Modbus RS485 interface Options: I/O expansion cards, relay outputs, communication: EtherNet/IP, Modbus/TCP, CANopen, ProfiNet, Profibus DP V1, EtherCAT DeviceNet. Configuration and control elements: Decentralized graphical operator terminal, integrated web server, DTM (Device Type Manager), SoMove software.

Property	Value
Protection class (IP):	IP21
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Nominal output current:	23.5 A
Max. output voltage:	480.0 V
Mains voltage:	380.0 to 480.0 V
Number of input phases:	3
Number of HW interfaces in parallel:	0.0
Number of other HW interfaces:	0.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	0.0
Number of HW interfaces serial RS-485:	3.0
4-quadrant operation possible:	yes
Max. Output frequency:	500.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	yes
Height:	409.0 mm
Supports protocol for LON:	no
Width:	171.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	236.0 mm
Type of converter:	U-converter
Integrated brake chopper:	no
Max. delivered power with linear load at rated output voltage:	11.0 kW
Supports protocol for TCP/IP:	no
Supports protocol for DeviceNet:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	yes
Supports protocol for KNX:	no
Permitted for use in residential and commercial areas:	yes
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	no
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	0.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	11.0 kW
Number of HW interfaces USB:	0.0
With PC connection:	no
Number of analog outputs:	2.0
Number of analog inputs:	3.0
Number of digital outputs:	1.0
Number of digital inputs:	8.0
Supports protocol for BACnet:	no
