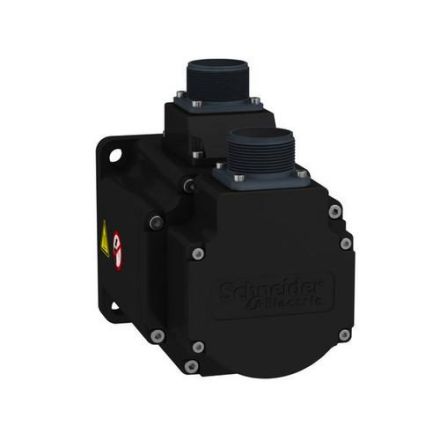

Schneider Electric BCH2LH1033CF6C BCH 100mm 1000 W with oil seal and matching servo motor

In stock

SKU: 694852

Price on request

€2,168.04

€0

Overview

Synchronous AC servo motors, with high-resolution 20-bit single-turn absolute encoders. Available in six flange sizes: 40mm - 180mm. Optionally also with holding brake

Property	Value
Design:	Three-phase synchronous motor
Rated voltage:	220.0 V
Rated frequency:	50.0 to 60.0 Hz
Type of voltage:	AC
Rated power at rated frequency:	1.0 kW
Rated speed at rated frequency:	3000.0 1/min
Starting torque ratio:	0.0
Starting current ratio:	0.0
Number of phases:	3.0
Shaft end design:	Keyway
Design:	other
Load cycle:	other
Rated current:	21.8 A
Operating temperature:	0.0 to 40.0 °C
Suitable for frequency control:	no
Intrinsic safety (IS):	without
Insulation class according to IEC:	other
Towdown moment ratio:	0.0
Cooling method:	other
Bearing:	other
With condensation protection:	no
With positive temperature coefficient resistor (PTC):	no
With resistance thermometer detector (RTD):	no
Nominal torque:	0.64 Nm
Number of poles:	3.0
Protection class (IP):	IP65
Overload capacity:	no
Vacuum pressure impregnation (VPI):	other
Housing material:	other
Motor energy efficiency class:	other
