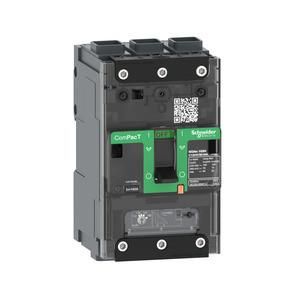

Schneider Electric C12N3TM160L NSXm+TM160 A 3P 50kA/415V ELINK circuit breaker

In stock
SKU: 833823
€559.71
Into a basketIn the basketGo

Overview

It is a ComPacT NSXm molded case circuit breaker, 160 A, 50 kA at 415 VAC, for all standard LV applications. It offers new features such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring type auxiliary devices that are externally visible. ComPacT NSXm is one of the smallest molded case circuit breakers available on the market, 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with integrated thermo-magnetic trip device. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.

Property Value
Rated continuous current Iu: 160.0 A
Connection type main circuit: Screw connection
Number of poles: 3.0
Auxiliary normally open contact: 0.0
Auxiliary normally closed contact: 0.0
Device design: Built-in device Fixed installation technology
Position of the connection for the main circuit: front
Protection class (IP): IP40
Overload release current setting: 112.0 to 160.0 A
Setting range of the instantaneous short-circuit release: 1250.0 A
Rated voltage: 690.0 V
Icu at 400V: 50.0 kA
Suitable for DIN rail mounting: yes
Design of the actuating element: toggle
Integrated earth fault protection: no
Motor drive integrated: no
Motor drive optional: no
With trip detector: yes
Number of auxiliary contacts as changeover contacts: 0.0
Complete device with protection unit: yes
DIN rail mounting optional: no

Characteristics

Number of auxiliary contacts as changeover contacts0.0
HABNSXm+TM160 A 3P 50kA/415V ELINK
ManufacturerSchneider Electric
HANC12N3TM160L
GTIN3606481991256
Connection type main circuitScrew connection
Design of the actuating elementGag
Rated continuous current Iu160.0A
Rated voltage690.0V
Setting range of the instantaneous short-circuit release1250.0A
Suitable for DIN rail mountingYes
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalNo
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorYes
Motor drive integratedNo
Motor drive optionalNo
Number of poles3.0
Position of the connection for main circuitIn front
IP protection)IP40
Overload release current setting112.0 to 160.0 A
