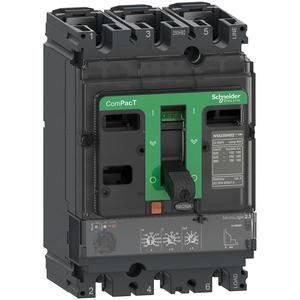

Schneider Electric C16N32D160 NSX160N +ML 2.2 3P3D 57-160A 50kA/415VAC circuit breaker

Schneider Electric C16N32D160 NSX160N +ML 2.2 3P3D 57-160A 50kA/415VAC circuit breaker

In stock

SKU: 833833

Price on request

€690.56

€0

Overview

This ComPacT NSX160N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 50 kA rms at 415 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features a MicroLogic 2.2 electronic trip unit rated at 160 A. The MicroLogic 2.2 trip unit offers customizable long and short time protection functions as well as fixed instantaneous protection. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a wide range of optional features and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160N is part of the EcoStruxure Power architecture from Schneider Electric.

Property	Value
Rated continuous current Iu:	160.0 A
Connection type main circuit:	Screw connection
Number of poles:	3.0
Auxiliary normally open contact:	0.0
Auxiliary normally closed contact:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for the main circuit:	front
Protection class (IP):	IP30
Overload release current setting:	57.0 to 160.0 A
Setting range of the short-time delayed short-circuit release:	86.0 to 1600.0 A
Setting range of the instantaneous short-circuit release:	2400.0 A
Rated voltage:	690.0 V
Icu at 400V:	50.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Integrated motor drive:	no
Optional motor drive:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	0.0
Complete device with protection unit:	yes
DIN rail mounting optional:	no
