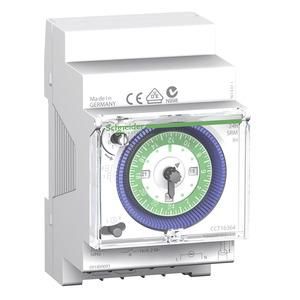

Schneider Electric CCT16364 mech. 24h 1-channel timer

In stock

SKU: 688707

Price on request

€47.53

€0

Overview

Mechanical timer, IH 24h 1c SRM, 24 hrs., without memory, protection class IP20B

Property	Value
Width in division units:	3.0
Number of channels:	1.0
Protection class (IP):	IP20
24 h program:	yes
Suitable for manual operation:	yes
Supply voltage:	230.0 V
Mounting type:	DIN rail
Type of supply voltage:	AC
Frequency of supply voltage:	50.0 Hz
Shortest switching time channel 1:	15.0 min
Contact design:	Changeover contact
Mains synchronous:	no
Weekly program:	no
Nominal switching current at 250 V AC:	16.0 A
Annual program:	no
Quartz controlled:	no
Automatic summer/winter time change:	no
Height:	90.0 mm
Width:	54.0 mm
Depth:	66.0 mm
Program disk division 1:	15.0 min
Switching preselection:	yes
Potential-free switching contact:	yes
60 min program:	no
