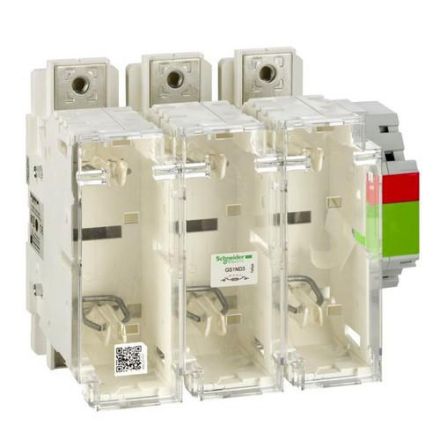

HABGS1ND3 m. safety.
HANGS1ND3
GTIN3389110254020
Connection type main circuitScrew connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementWithout actuator
Conditional rated short-circuit current Iq100.0kA
Rated operational power at AC-23, 400 V132.0kW
Rated continuous current Iu250.0A
Rated short-time withstand current Icw100.0kA
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsNH1
Cable entryOther
Max. rated operating voltage Ue at AC750.0V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3.0
Position of the actuatorRight
Protection class (IP), frontIP20
