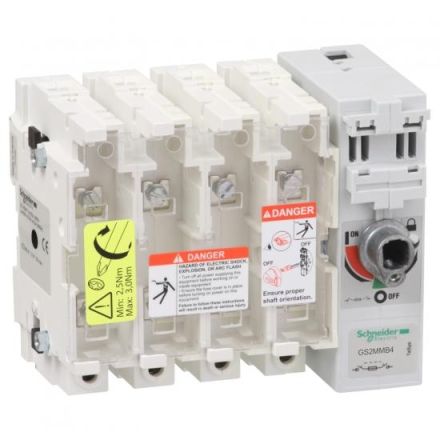

Schneider Electric GS2MMB4 Fuses TeSys GS2M 4p 200A DIN B1 B2 Switch disconnector

Schneider Electric GS2MMB4 Fuses TeSys GS2M 4p 200A DIN B1 B2 Switch disconnector

In stock

SKU: 700407

Price on request

€592.48

€0

Overview

Fuse switch disconnector The use of fuses is a reliable and effective solution for protecting your low-voltage equipment against short circuits

Property	Value
Rated continuous current Iu:	200.0 A
Degree of protection (IP), front:	IP20
Number of poles:	4.0
Design as main switch:	yes
Design of the actuating element:	without actuator
Type of connection main circuit:	Screw connection
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	100.0 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	750.0 V
Suitable for busbar construction:	yes
Suitable for fuse links:	Form B1-B3
Position of the actuating element:	other
Motor drive integrated:	no
Rated short-time withstand current Icw:	100.0 kA
Motor drive optional:	no
Rated operating power at AC-23, 400 V:	100.0 kW
Cable entry:	other
Equipped with connectors:	no
