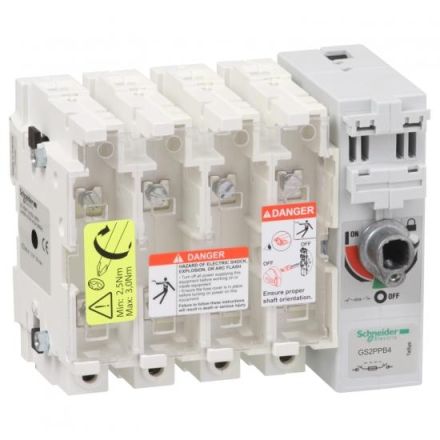

Schneider Electric GS2PPB4 TeSys GS2p 4p 315A DIN B1 B2 B3 load-disconnector

In stock
SKU: 700415
€1,066.05
Into a basketIn the basketGo

Overview

Fuse switch disconnector The use of fuses is a reliable and effective solution for protecting your low-voltage equipment against short circuits

Property Value
Rated continuous current Iu: 315.0 A
Degree of protection (IP), front: IP20
Number of poles: 4.0
Design as main switch: yes
Design of the actuating element: without actuator
Type of connection main circuit: Screw connection
Suitable for front mounting: no
Suitable for floor mounting: no
With fuse monitoring: no
Version as EMERGENCY STOP device: no
Conditional rated short-circuit current Iq: 100.0 kA
Version as safety switch: no
Max. Rated operating voltage Ue at AC: 800.0 V
Suitable for busbar construction: yes
Suitable for fuse links: Form B1-B3
Position of the actuating element: other
Motor drive integrated: no
Rated short-time withstand current Icw: 100.0 kA
Motor drive optional: no
Rated operating power at AC-23, 400 V: 150.0 kW
Cable entry: other
Equipped with connectors: no

Characteristics

HABTeSys GS2p 4p 315A DIN B1 B2 B3
ManufacturerSchneider Electric
HANGS2PPB4
GTIN3389119411332
Connection type main circuitScrew connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementWithout actuator
Conditional rated short-circuit current Iq100.0kA
Rated operational power at AC-23, 400 V150.0kW
Rated continuous current Iu315.0 A
Rated short-time withstand current Icw100.0kA
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsForms B1-B3
Cable entryOther
Max. rated operating voltage Ue at AC800.0V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles4.0
Position of the actuatorOther
Protection class (IP), frontIP20
Schneider Electric GS2PPB4 TeSys GS2p 4p 315A DIN B1 B2 B3 load-disconnector
Schneider Electric GS2PPB4 TeSys GS2p 4p 315A DIN B1 B2 B3 load-disconnector
€1,066.05
