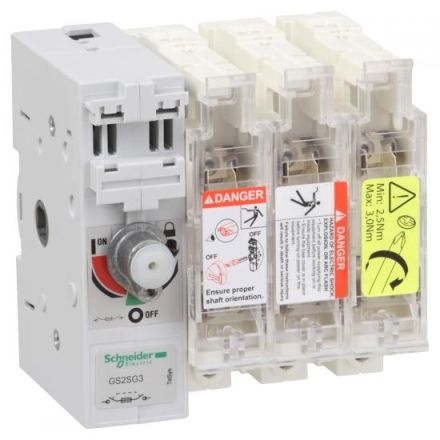

Schneider Electric GS2SG3 with fuses TeSys GS2S 3p 630A DIN 3 switch disconnector

Schneider Electric GS2SG3 with fuses TeSys GS2S 3p 630A DIN 3 switch disconnector

In stock

SKU: 700423

Price on request

€1,352.99

€0

Overview

Fuse switch disconnector The use of fuses is a reliable and effective solution for protecting your low-voltage equipment against short circuits

Property	Value
Rated continuous current Iu:	630.0 A
Degree of protection (IP), front:	IP20
Number of poles:	3.0
Design as main switch:	yes
Design of the actuating element:	without actuator
Type of connection of main circuit:	Screw connection
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	100.0 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	1000.0 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH3
Position of the actuating element:	left
Integrated motor drive:	no
Rated short-time withstand current Icw:	100.0 kA
Optional motor drive:	no
Rated operating power at AC-23, 400 V:	355.0 kW
Cable entry:	other
Equipped with connectors:	no
