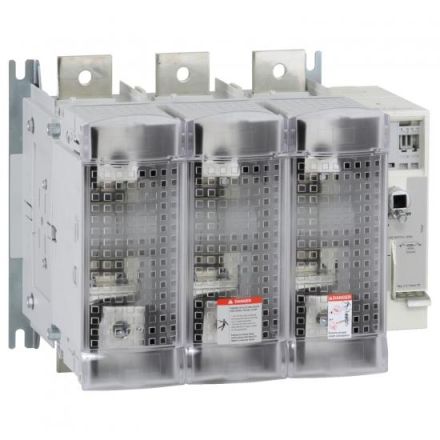

HABTeSys GS switch disconnector, 3 P UL 600A
HANGS2SU3
GTIN3389119411448
Connection type main circuitScrew connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementWithout actuator
Conditional rated short-circuit current Iq100.0kA
Rated operational power at AC-23, 400 V355.0kW
Rated continuous current Iu600.0A
Rated short-time withstand current Icw100.0kA
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsOther
Cable entryOther
Max. rated operating voltage Ue at AC1000.0V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3.0
Position of the actuatorIn front
Protection class (IP), frontIP20
