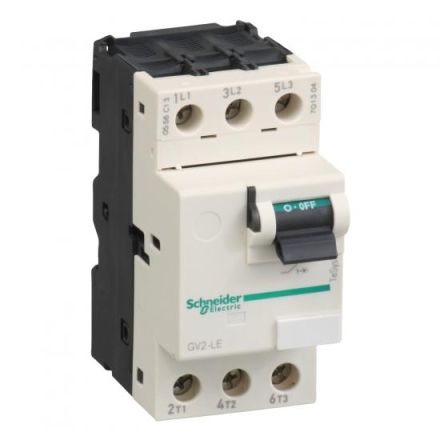

Schneider Electric GV2LE32 32A MAG. Motor protection switch

In stock
SKU: 676505
€118.77
Into a basketIn the basketGo

Overview

Motor protection switches with thermal and magnetic release These devices are easy to use and set up, with compact and ergonomic products for requirements in the field of starter motors and stop motors.

Feature Value
Number of poles: 3.0
Voltage: 0.0 to 690.0 V
Power at 230V: 7.5 kW
Power: 15.0 kW
Rated continuous current Iu: 32.0 A
Short-circuit current Icu: 10.0 kA
Triggering technology: magnetic
Phase failure sensitive: yes
Connection type main circuit: screw connection
Device design: Complete device in housing
Protection class (IP): IP20
Width: 45.0 mm
Setting range of the undelayed short-circuit release: 416.0 A
With integrated auxiliary switch: no
With integrated undervoltage release: no
Height: 89.0 mm
Depth: 78.5 mm
Design of the actuating element: Toggle lever
With thermal overload protection: no

Characteristics

Voltage0.0 to 690.0V
HABGV2LE32 32A MAG.
ManufacturerSchneider Electric
HANGV2LE32
GTIN3389110733181
Connection type main circuitScrew connection
Design of the actuating elementRocker arm
Triggering technologyMagnetic
Rated continuous current Iu32.0A
Width45.0 mm
Setting range of the instantaneous short-circuit release416.0 A
Device typeComplete device in housing
Height89.0 mm
Performance15.0kW
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
Sensitive to phase failureYes
Number of poles3.0
IP protection)IP20
Depth78.5 mm
