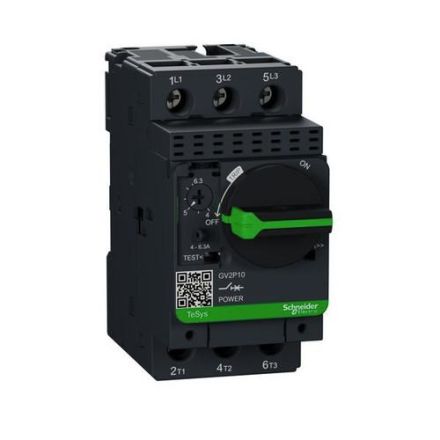

Schneider Electric GV2P10 motor protection switch

In stock

SKU: 676525

Price on request

€65.40

€0

Overview

Motor protection switches with thermal and magnetic release These devices are easy to use and set up, with compact and ergonomic products for requirements in the field of starter motors and stop motors.

Feature	Value
Number of poles:	3.0
Voltage:	690.0 V
Power at 230V:	1.5 kW
Power:	2.2 kW
Rated continuous current Iu:	6.3 A
Short circuit current Icu:	100.0 kA
Overload release current setting:	4.0 to 6.3 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Main circuit connection type:	screw connection
Device design:	Complete device in housing
Protection class (IP):	IP20
Width:	44.5 mm
Setting range of the instantaneous short-circuit release:	78.0 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	89.0 mm
Depth:	97.0 mm
Design of the actuating element:	Rotary knob
With thermal overload protection:	yes
