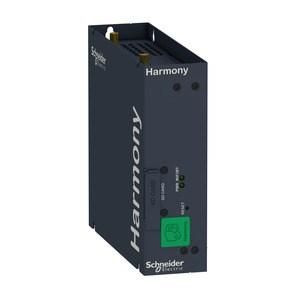

HMIBSCEA53D1ESS - EV Charging Expert - Load management for EVlink charging stations with static control of up to 15 charging stations in one zone. . Operating mode: static, controllable zones: 1, zone level: 1. Consumption analysis of all charging stations, RFID badge management, monitoring via dashboard and remote access to the charging stations. Export of maintenance reports, export of charging data, commissioning of all connected charging stations. Connectivity: connection to the OCPP monitoring (OCPP 1.6 Json), connection to the EcoStruxure support (web services), optional: 3G/4G modem, commissioning via Ethernet cable. Different user profiles, Multiple zones and sub-zones, Compatible charging stations: EVlink Wallbox G4 Smart, EVlink Parking Space 2, EVlink 24 kW DC Fast Charger, EVlink AC Pro, Parking Space 3. Installation: On mounting plate portrait or flat, DIN rail, dimensions WxHxD (mm) 157x150x46, weight 1 kg. Mechanical and environmental properties: IP protection class IP40, operating temperature 0 to 50 °C, storage temperature -20 to 60 °C. Relative humidity 10 to 95% non-condensing, operating altitude max. 2000 m. Electromagnetic compatibility 2004/108/EC, conducted and radiated emissions class A EN 55022, Low Voltage Directive 2006/95/EC, EN 61131-2. Class A Group 1 EN 55011, EN 61000-6-4, EAC, RCM, CE.
| Feature | Value |
| Width: | 157.0 mm |
| Energy consumption: | 16.0 W |
| Height: | 150.0 mm |
| Charging current: | 2.5 A |
| Max. Number of controllable charging points: | 30.0 |
| With communication interface: | yes |
| Emergency release in case of power failure: | no |
| Depth: | 46.0 mm |
