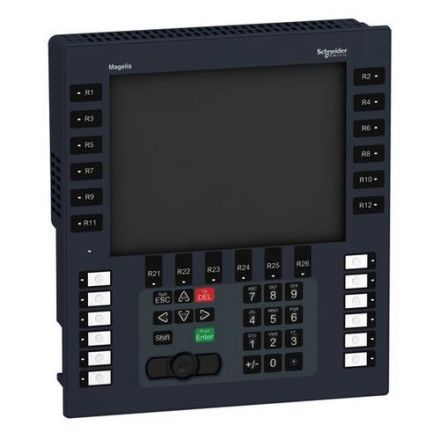

Schneider Electric HMIGK5310 Magelis Operating Soft-Keyboard 24-Key Panel

Schneider Electric HMIGK5310 Magelis Operating Soft-Keyboard 24-Key Panel

In stock

SKU: 777041

Price on request

€3,348.23

€0

Overview

Optimum panels with buttons and touchscreen. 5.7 inches and 10.4 inches. Optimum HMI with touch panel and button operation. Data entry touchscreen, 50 buttons, industrial trackpoint, display type 640 x 480 pixels, 65K colors, Ethernet_RJ45 1, interfaces 2 USB, memory 128MB, SD slot YES. Attractive panel for all areas of application where dirt or heavy gloves would make operation via the touchscreen difficult. Up to 50 buttons including freely definable buttons, service and an industrial trackpoint. Expansion of the storage space with 4 GB SD card possible HMI ZSD4G. Installation and project compatible with the predecessor XBTGK.

Property	Value
Voltage DC:	24.0 V
Protection class (IP):	IP65/IP67
Memory:	128000.0 kByte
Ethernet:	1.0
USB:	2.0
RS-232:	1.0
RS-422:	0.0
RS-485:	1.0
serial:	0.0
parallel:	0.0
Type of supply voltage:	AC/DC
Display design:	TFT
Screen diagonal:	10.4 inches
With color display:	yes
With alpha keyboard:	yes
With numeric keypad:	no
Number of PROFINET interfaces:	0.0
Width of the front:	296.0 mm
Height of the front:	332.0 mm
Installation depth:	76.0 mm
Operating temperature:	0.0 to 55.0 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Mounting rail mounting possible:	no
Number of HW interfaces wireless:	0.0
Supports protocol for Data Highway:	no
Supports protocol for other Bus systems:	yes
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	yes
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	yes
Supports protocol for TCP/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	no
Number of colors of the display:	65536.0
Number of pixels, horizontal:	1024.0
Number of Pixels, vertical:	1024.0
Number of function keys, programmable:	18.0
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
With printout:	yes
Additional software components, loadable:	yes
With SW interfaces:	yes
Supports protocol for LON:	no
other:	0.0
Number of system keys:	8.0
GPRS wireless standard:	no
Number of keys with LED:	20.0
GSM wireless standard:	no
UMTS wireless standard:	no
Touch technology:	Resistive touch
Protection class (NEMA), front:	4X
